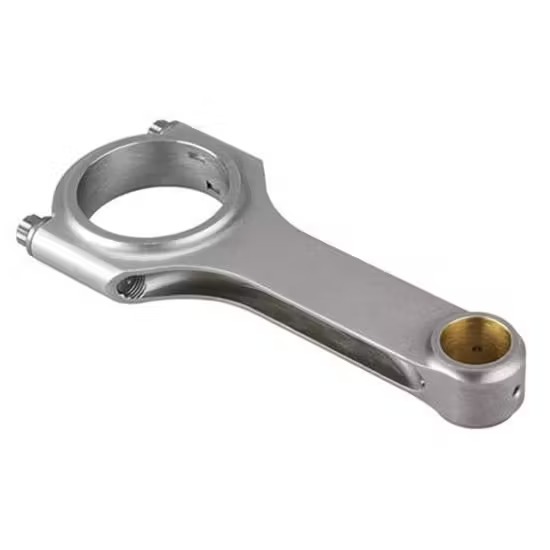

Small Block Chevy 4340 Steel H-Beam Rods, Bushed Pin

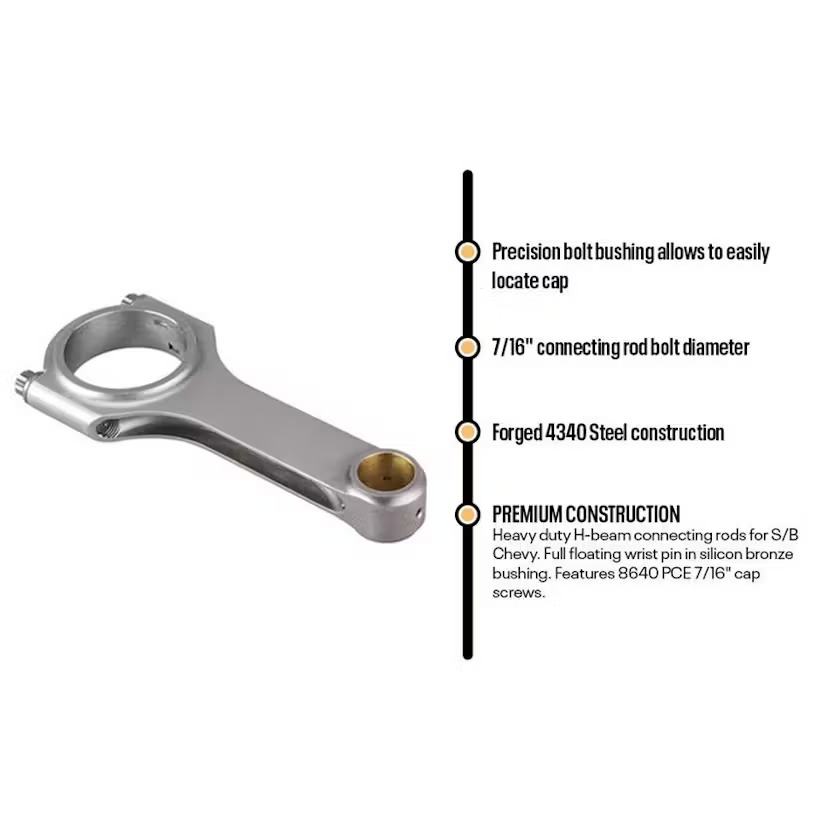

Heavy duty H-beam connecting rods for S/B Chevy. Full floating wrist pin in silicon bronze bushing. Precision bolt bushing to positively locate cap. Features 8640 PCE 7/16″ cap screws.
Weight matched sets of 8. Available in 5.7″ or 6.0″ lengths.
| KEY SPECS | |
|---|---|
| MFG. Part # |
5.7 Inch |
| Brand | Speedway Motors |
| Connecting Rod Type | H-Beam |
| Connecting Rod Material | Forged 4340 Steel |
| Connecting Rod Length | Select Length to see |
| Wrist Pin Style | Floating |
| GENERAL | |
| Wrist Pin Diameter | 0.927″ |
| Rod Journal Diameter | 2.100″ |
| Connecting Rod Bolt Diameter | 7/16″ |
| Crank Pin Diameter | Select Length to see |
| Sold in Quantity | Set |
| Notes | Torque rod bolts to 63 ft/lbs. |
| Rod Crank End Width | 0.940″ |
| Weight | Select Length to see |
| Cap Retention Style | Cap Screw |
| Connecting Rod Bolt Brand | PCE |
| New or Remanufactured | New |
