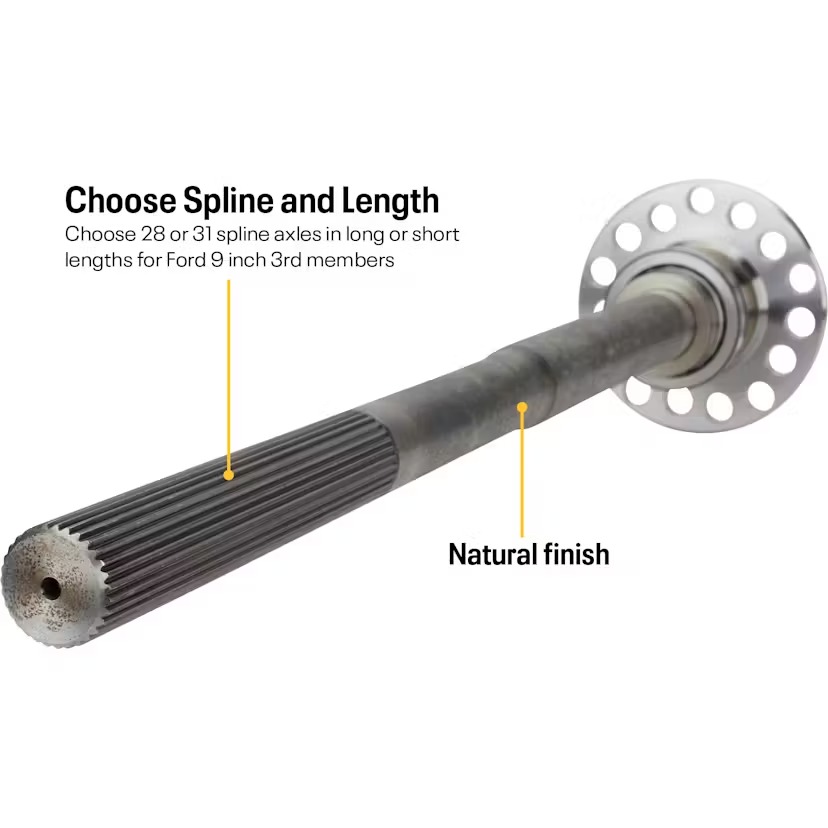

These steel axle shafts have a natural finish and are sold as a pair. They are perfect for small shops and will allow you to build your own custom width rear end easily. Axle length is measured from the flange to the end of the splines. Be sure to select your choice of length; short or long, and either 28 or 31 spline.

• Circle track / off road application 5/8″ thread wheel studs sold separately 910-05957 and 910-05958
• Street application 1/2″ thread wheel studs sold separately 910-05959 and 545-46190
• 9 Inch Ford
• 28 or 31 spline axle
• Short and long cut to fit axle shafts

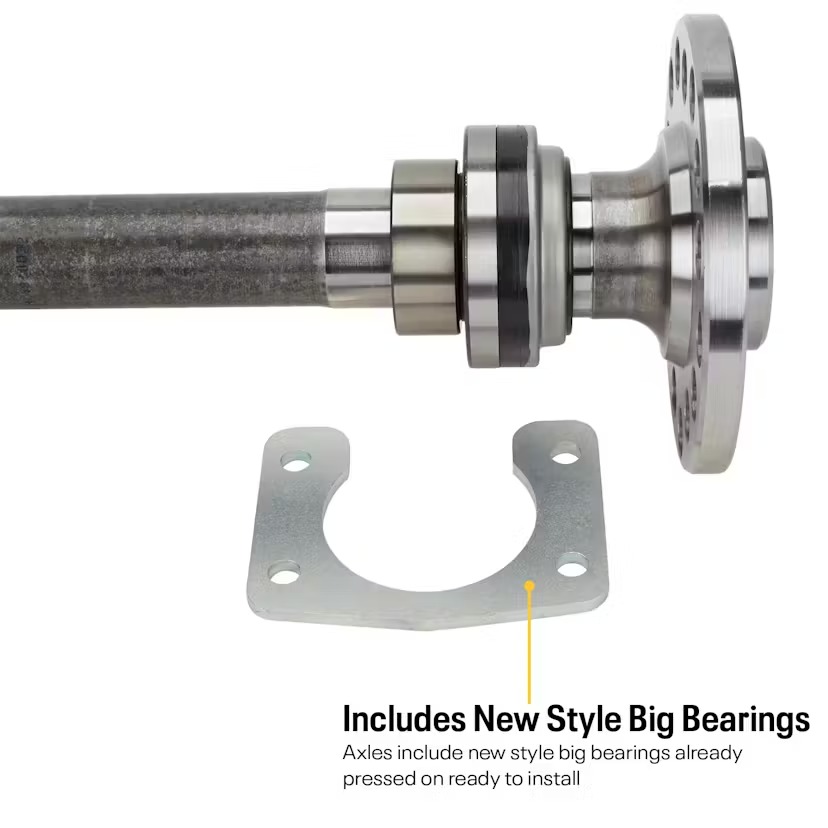

• Axle has the new style big bearing ends on it
• Bearing measures 3.150″
• Bearings already pressed in
• 2-1/2″ Offset

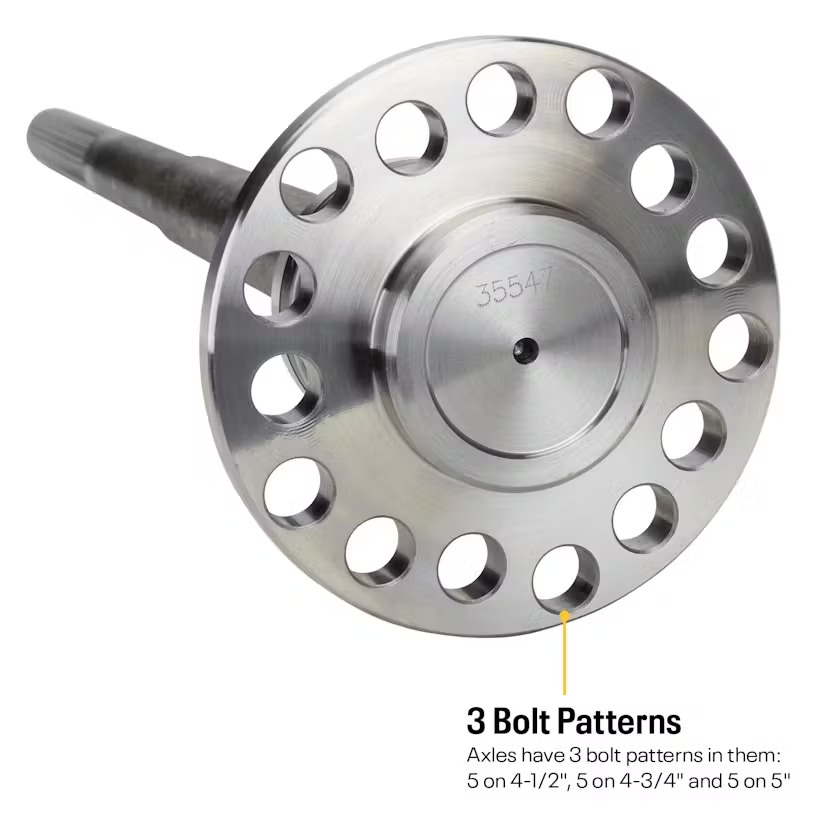

• Drilled for 5 on 4-1/2″, 5 on 4-3/4″ and 5 on 5″ wheel bolt patterns using 0.685″ knurl dia.
• PA20 set bearing
• AR375 Torino retainer
• Axle length is from the flange to the end of the splines
• Axles sold as a pair with your choice of spline count and length
• The hub pilot (center of the axle flange) measures 2.781″
• The O.D. of the axle flange measures 5.93″
