Universal SBC Double Pass Radiator Kit, Dual Electric Fans, 31 In

niversal Fit, Double Pass Radiator Style, Aluminum

• A professional quality, lightweight, double-pass, all-aluminum racing radiator at a budget-friendly price
• Furnace-brazed construction is more durable and improves performance vs. epoxy and gasket construction
• Included electric fan shroud comes complete with rubber flaps for higher speeds when airflow through the grille increases
• Features two 12 inch diameter fans, 2-3/8 inch wide, S-blade style, 10 blades, 750 CFM maximum airflow
• 15lb chrome radiator cap included

Features

• A professional quality, lightweight, all-aluminum racing radiator at a budget-friendly price
• Furnace-brazed construction is more durable and improves performance vs. epoxy and gasket construction
• Two-rows of 1” aluminum tubes cool better than 5 rows of traditional copper tubes
• Double pass design lowers coolant temperatures 10-20 degrees with 2.25” core
• Dense fin structure improves airflow and adds rigidity
• Billet aluminum filler neck guarantees a long-lasting seal under high pressures
• Widths of 31-inch available, 19 inches tall to fit a variety of applications
• Basic design for universal fit and focus on engine cooling
• 1.5” passenger side upper inlet, and 1.75” passenger side lower outlet

Kit Includes:

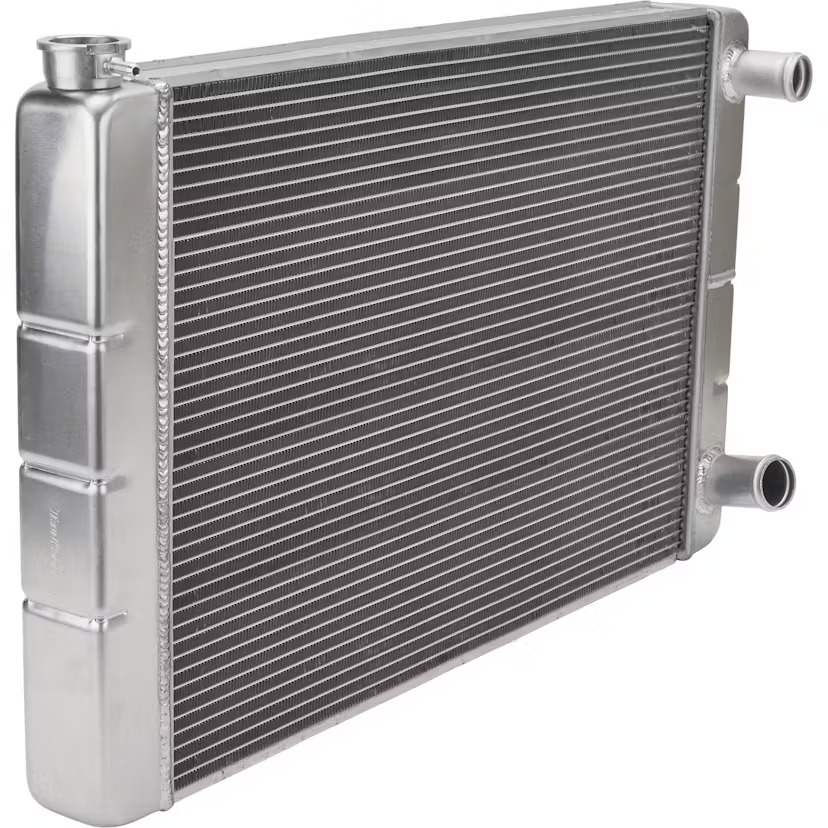

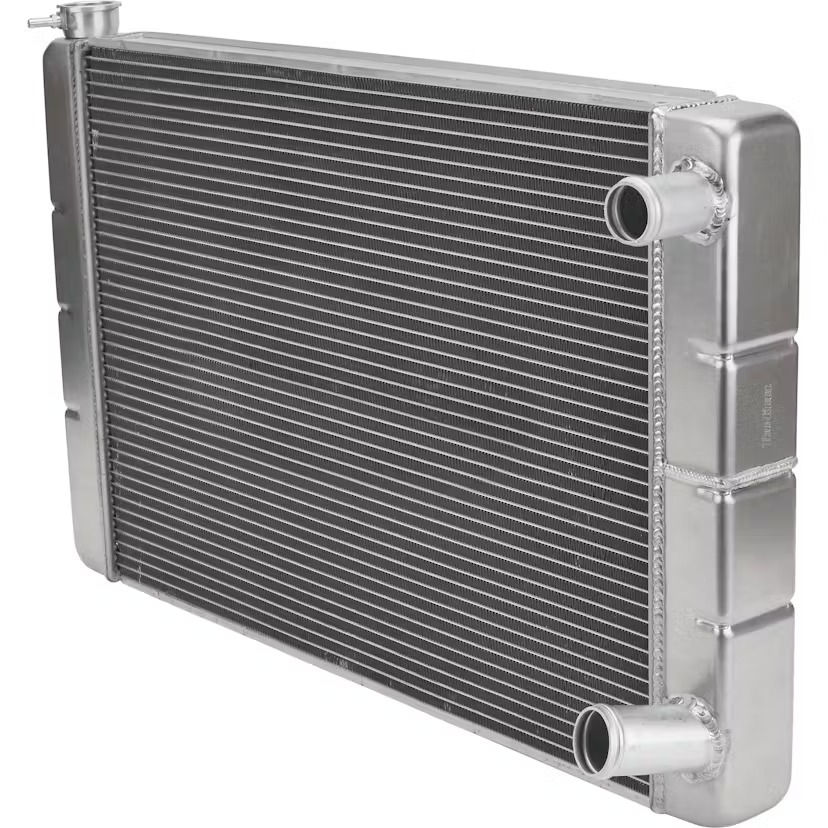

• (1) Speedway 31 In. Double Pass Aluminum Racing Radiator, S/B Chevy
• (1) Aluminum Fan Shroud for 31 Inch Radiator, Dual Electric Fans
• (2) Speedway Universal Electric Radiator Cooling Fans, 12 Inch
• (2) Fan/Shroud/Cooler Mounting Kits
• (1) Round Chrome Radiator Pressure Cap, 15 Lbs

Aluminum Fan Shroud for 31 Inch Radiator, Dual Electric Fans

• Designed to concentrate airflow to your cooling fan
• Composed of high-quality aluminum, it is lightweight and easy to drill through for a custom fit
• Complete with rubber flaps for higher speeds when airflow through the grille increases
• Instruction sheet
• Bolt-on installation
• Shroud made of 16 gauge aluminum
• 8 rubber flaps
• Fits dual 11″ or 12″ fans
• Measures 18-3/4″ tall x 25-3/4″ wide x 1/2″deep

Speedway Universal Electric Radiator Cooling Fans, 12 Inch

• Speedway Motors universal fans provide efficient airflow
• Computer-balanced blades, heavy-duty one-piece construction, and a complete mounting kit included
• Provide the cooling power you need with reduced noise and vibration
• Reversible, so they can be configured as pushers or pullers
• 12 inch diameter
• 2-3/8 inch wide
• S-blade style
• 10 blades
• 750 CFM maximum airflow

Fan/Shroud/Cooler Mounting Kit

• Consists of 4 threaded plastic bolts 3/16″ diameter and approx. 8-1/2″ long
• Includes 4 1/4″ spacers, 8 thin washers, and 4 metal wingnuts
• Works great for mounting your fan shroud, electric fan, or oil cooler directly to your radiator

Round Chrome Radiator Pressure Cap, 15 Lbs

NOTE: While this cap is chrome plated for durability, it may not meet standards of a premium, “show” quality finish.

• 15 psi pressure rating
• Chrome finish
• 1-1/2″ O.D. interior sealing surface
• 2-2/3″ exterior O.D.
• Fits most standard radiator necks
