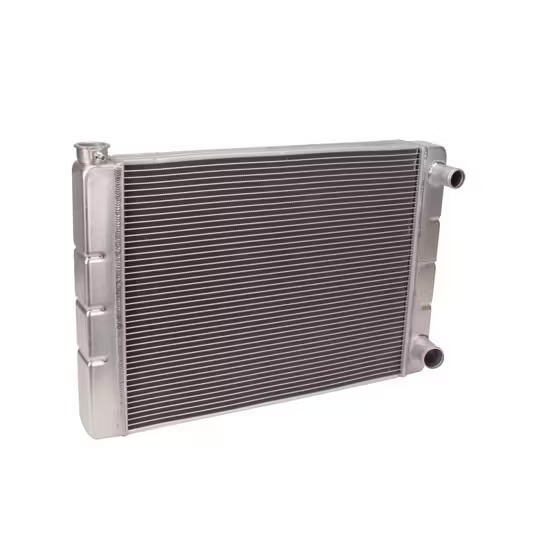

Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double

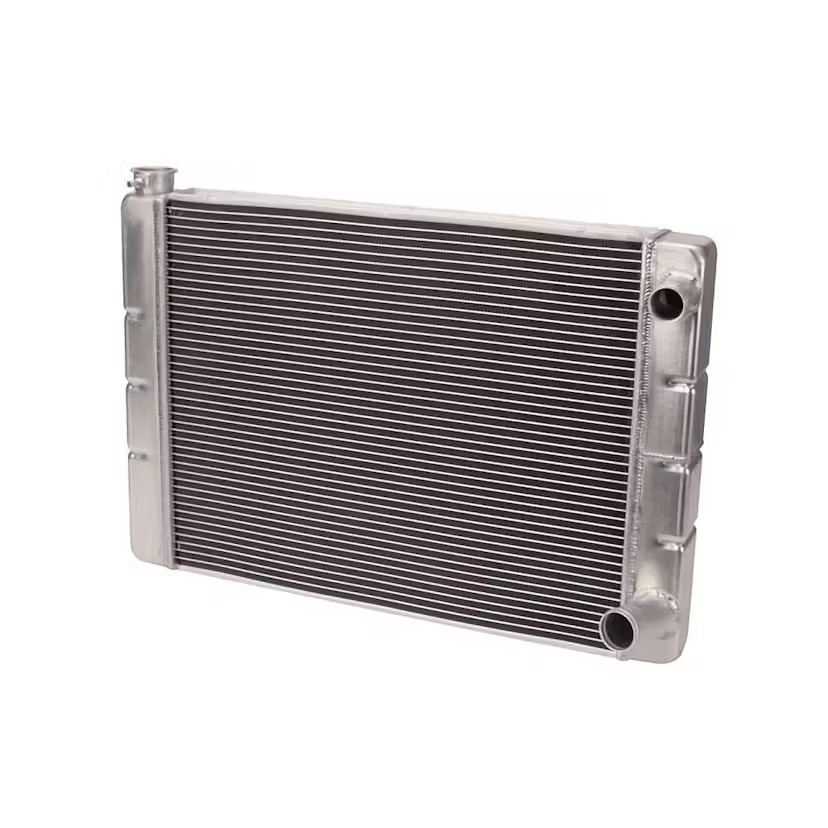

Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double - Image 2
Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double - Image 3
Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double - Image 4
Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double
Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double
Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double - Image 7

Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double

$223.00

Universal LS Swap Radiator Kit w/ Steam Port Hose Adapter, Double

KEY SPECS
MFG. Part # 916-04057
Brand Speedway Motors
Radiator Style Double Pass
Radiator Flow Direction Crossflow
Material Type Aluminum
Inlet Location Upper passenger side
Outlet Location Lower passenger side
Row Quantity 2
Tube Size 1.00″
Overall Height Range 19.00″ to 19.99″
Overall Height 19″
Overall Thickness 3″
Core Thickness 2.25″
Finish Natural
Cooling Fan Not Included
Transmission Cooler No
Shroud Included No
GENERAL
Filler Neck Height 1″
Inlet Size 1.50
Outlet Size 1.75
Fan Included No
Sold in Quantity Kit

Universal LS Swap Radiator Kit



Universal Fit, Double Pass Radiator Style, Aluminum

  • Features one 1.25″ end to match the water pump outlet and one 1.5″ end to match the upper radiator inlet
  • Has an integrated streamlined 1/4″ 90° hose barb fitting for the steam line
  • Comes with a black finish to blend in with radiator hoses
  • Radiator that the maximum amount of fins per inch for greater heat transfer
  • Made using no cheap epoxy glue or crimped in gaskets

Application

Recommended Sizes for Common Applications:

**Please note** These are not direct-fit radiators, and will generally require some modification to the vehicle for proper fitment

1966-82 C3 Corvette – Varies by year, see below

  • 1966-68 – 28″ Width
  • 1969-82 – 31″ Width

1967-91 Chevy C/K Trucks – 31″ Width

  • 1967-72 Chevy C10
  • 1973-87 Chevy Squarebody C10
  • 1969-91 Chevy K5 Blazer

1982-93 Chevy S-Series – 31″ Width

  • 1982-93 Chevy S10
  • 1982-93 GMC S15
  • 1982-93 GMC Sonoma

1982-92 GM F-Body – 31″ Width

  • 1982-92 Chevy Camaro
  • 1982-92 Pontiac Firebird

1982-88 GM G-Body – 31″ Width

  • 1982-87 Buick Regal
  • 1982-87 Chevy El Camino
  • 1982-83 Chevy Malibu
  • 1982-88 Chevy Monte Carlo
  • 1982-87 GMC Caballero
  • 1982-88 Oldsmobile Cutlass Supreme
  • 1982-83 Oldsmobile Cutlass Cruiser
  • 1983 Pontiac LeMans (Canada Only)
  • 1982-86 Pontiac Bonneville
  • 1982-87 Pontiac Grand Prix

1979-93 Ford Mustang – 28″ Width

1973-86 Jeep CJ – 24″ Width

  • 1976-86 CJ-7
  • 1981-86 CJ-8 Scrambler

Direct-Fit Options:

  • 1966-70 Impala
  • 1966-67 Chevelle/Malibu
  • 1968-72 Chevelle/Malibu
  • 1970-77 Monte Carlo
  • 1974-77 Buick Regal
  • 1966-77 Olds Cutlass
  • 1966-77 Pontiac Grand Prix
  • 1968-77 Pontiac LeMans/GTO
  • 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
  • 1973-90 Chevy/GMC Truck
  • 1967-69 Camaro
  • 1970-81 Camaro
  • 1968-79 Nova

NOTE: Applications for reference only – measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.
