Small-Block Chevy V6 Intake Manifold
Small-Block Chevy V6 Intake Manifold
Performer Small-Block Chevy 4.3L T.B.I. V6 Intake Manifold - Image 3

Performer Small-Block Chevy 4.3L T.B.I. V6 Intake Manifold

$566.95
More Information
Manufacturer Edelbrock
Application Application Specific
UPC 00085347037131
Series Performer
Gasket Or Seal Included No
Vehicle Model Chevrolet
Availability Note Available to Order
Warranty 12 Months
RPM Range Idle-5500 RPM
Emissions Code
Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Use stock Throttle Body Injection unit.; Recommended intake gasket: GM #12510908; Manifold height: A-3.93″, B-5.15″; Carb pad height: 4.54″; Port exit dimensions: 1.10″ x 1.92″; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Finish Satin
Material Aluminum
Rear Maximum Height 5.150 in
Single Or Dual Plane Type Dual

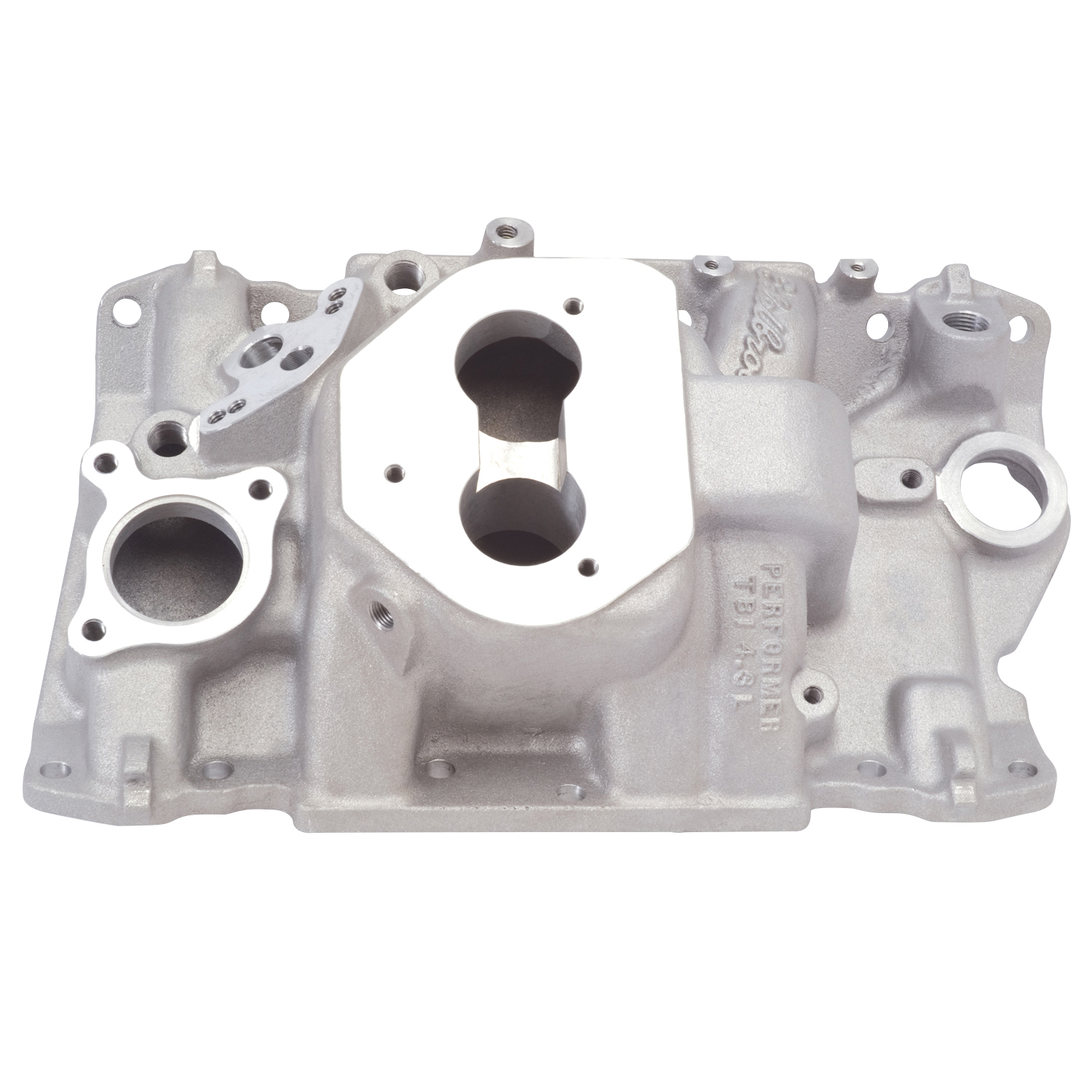

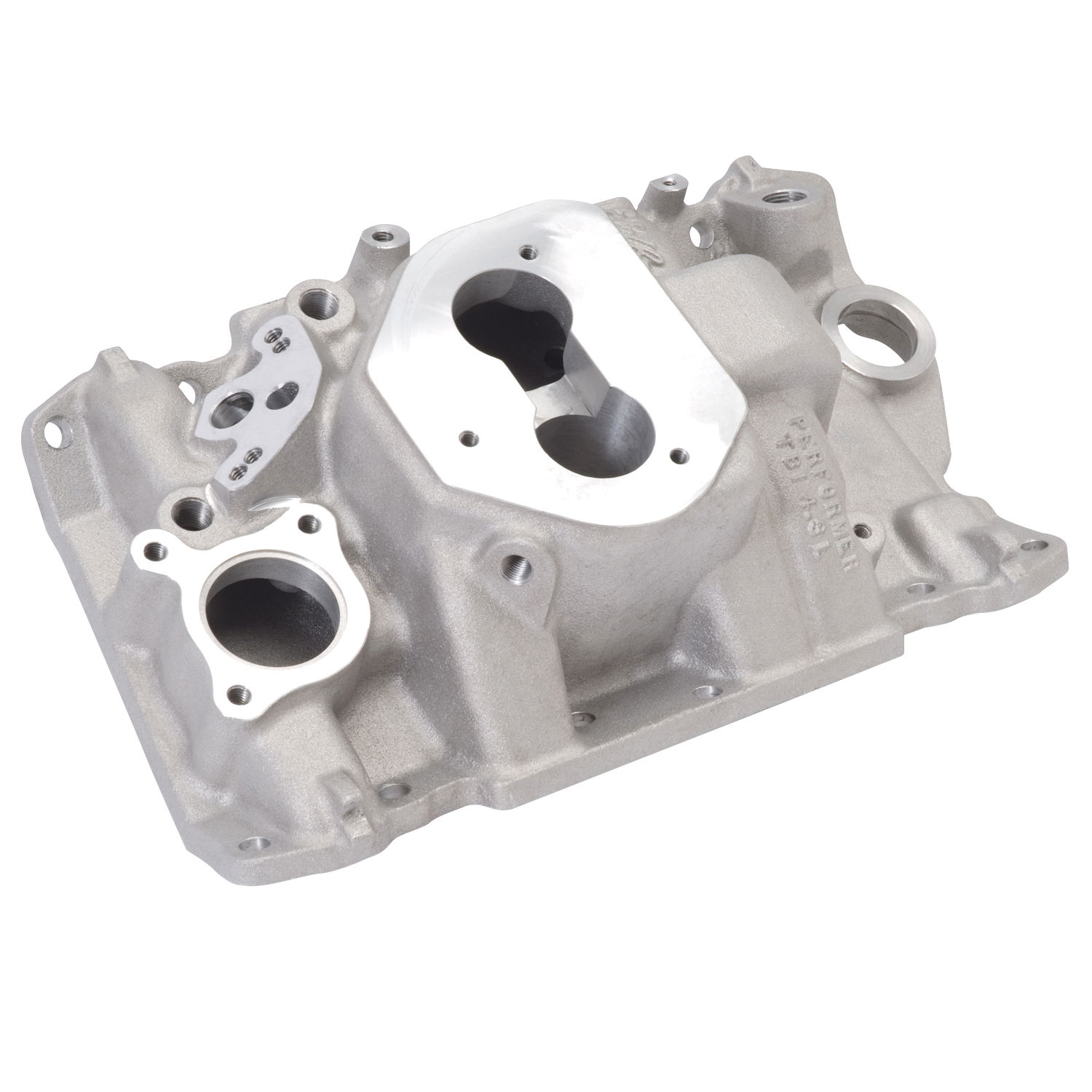

Performer Small-Block Chevy 4.3L T.B.I. V6 Intake Manifold

Small-Block Chevy V6 Intake Manifold , Edelbrock Performer 4.3L T.B.I. V6 Intake manifold for 1987-1994. Edelbrock part #3713 Performer 4.3L T.B.I V6 intake manifold is designed for street 1987-94 Chevrolet 4.3L V6 with factory Throttle Body Injection. The Performer 4.3L intake manifold provides outstanding throttle response and torque increases from idle to 5500 rpm.

Small-Block Chevy V6 Intake Manifold

Accepts all factory accessories/hardware. Throttle body unit remains in stock location. Not for 1994 and later engines equipped with flash memory computer. Flash memory ECM is located underhood. Edelbrock Performer 4.3L T.B.I. V6 Intake manifold for 1987-1994.

Small-Block Chevy V6 Intake Manifold
