EPS Intake Manifold for Small-Block Chevy
 EPS Intake Manifold for Small-Block Chevy
Performer EPS Intake Manifold for 1955-86 Small-Block Chevy, Polished Finish - Image 3

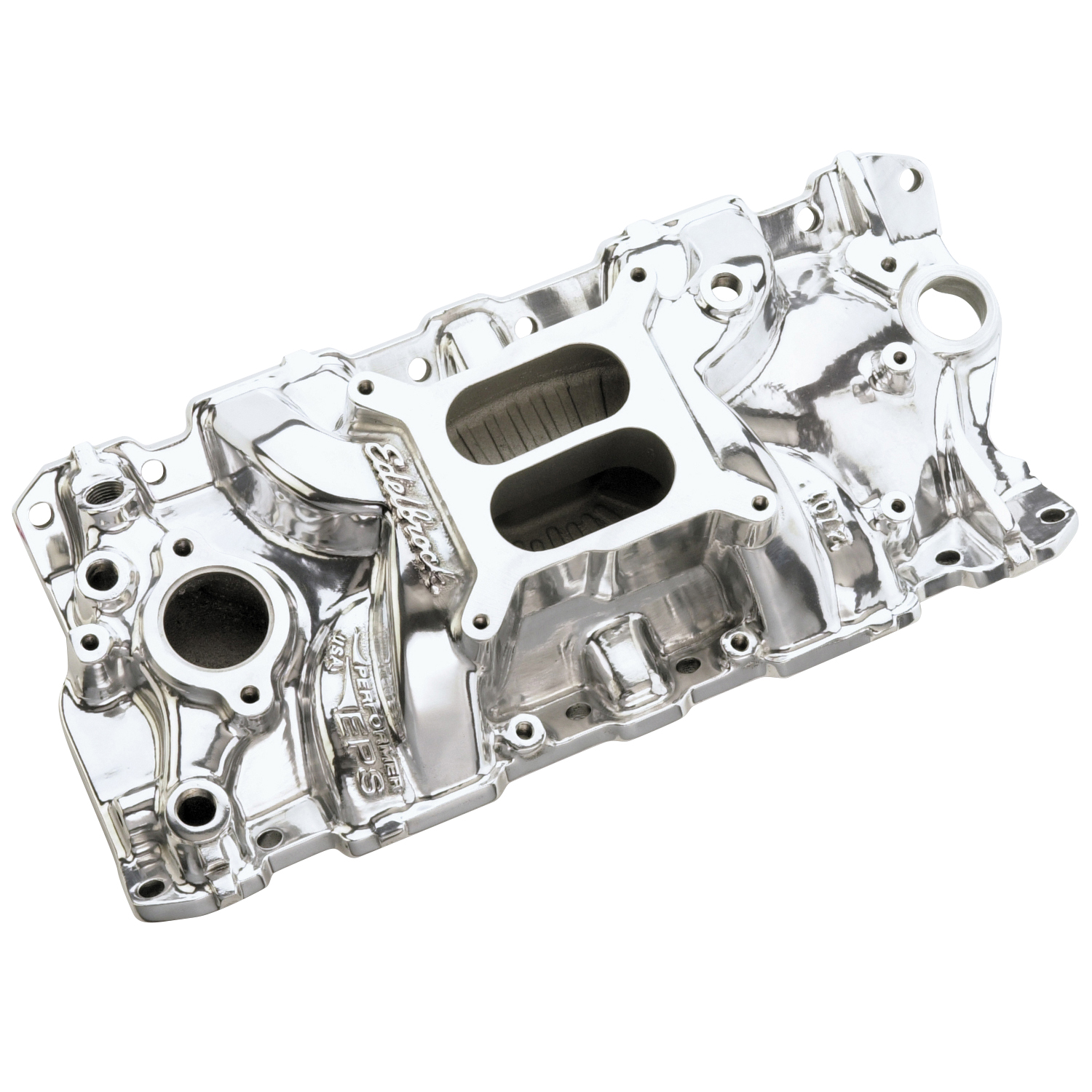

Performer EPS Intake Manifold for 1955-86 Small-Block Chevy, Polished Finish

$504.95
More Information
Manufacturer Edelbrock
Application Application Specific
UPC 00085347270118
Series Performer
Grade Type Performance
Gasket Or Seal Included No
Vehicle Model Chevrolet
Availability Note Available to Order
Warranty 12 Months
RPM Range Idle-5500 RPM
Emissions Code




Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Manifold ht: A-3.74″, B-4.80″; Carb pad height: 4.27″; Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm.; Port exit dimensions: 1.15″ x 1.87″.; Recommended intake gasket: Edelbrock #7201.; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Will not fit under stock Corvette hood.; Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Color Polished
Finish Polished
Material Aluminum
Rear Maximum Height 4.800 in
Single Or Dual Plane Type Dual

Performer EPS Intake Manifold for 1955-86 Small-Block Chevy, Polished Finish

 EPS Intake Manifold for Small-Block Chevy , Edelbrock part #27011 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock’s Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response.

 Buy EPS Intake Manifold for Small-Block Chevy new me now

With that the Edelbrock Performer EPS intake manifold has a runner design that’s “tuned” for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs.

 EPS Intake Manifold for Small-Block Chevy

of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. From 3000 to 4500 rpm, the power increases averaged 5+ ft-lbs. of torque for more performance where you need it most. This manifold offers a polished finish for a brilliant shine and classic look. EPS Intake Manifold for Small-Block Chevy
 EPS Intake Manifold for Small-Block Chevy
