Buy cison v8 engine

Following the success of CISON’s single-cylinder, V2, and L4 engine models, we proudly introduce the Small-block V8, a mini beast that is set to become another classic in the world of scaled engines, impressing enthusiasts with its remarkable features. The V8-440(Flathead) design incorporates elements of the Ford V8, while the V8-440(OHV) draws inspiration from the Chevrolet V8, aiming for a highly realistic appearance. Featuring an exquisite electroplated paint in orange, a high-stroke, and 4-point supported camshaft, larger intake valves compared to exhaust valves, a 5-point supported crankshaft, reinforced and hardened connecting rods, optional dual cast iron piston rings, an independent lubrication system, and double-layer gear pump water pump, among other features. It’s not just a roaring beast on your desk but also a “powerhouse” compatible with RC models, providing enhanced torque and power output.

.DIY Fun: cison v8 engine
Crafted with high-precision parts, and easy-to-follow assembly instructions for a deep understanding of engine structure and mechanical principles.

.Highly Realistic:
Adopt exquisite electroplated paint for a lifelike engine appearance, suitable for real fuel operation, and provides a location for optional generator installation.

.Precision Manufacturing: cison v8 engine

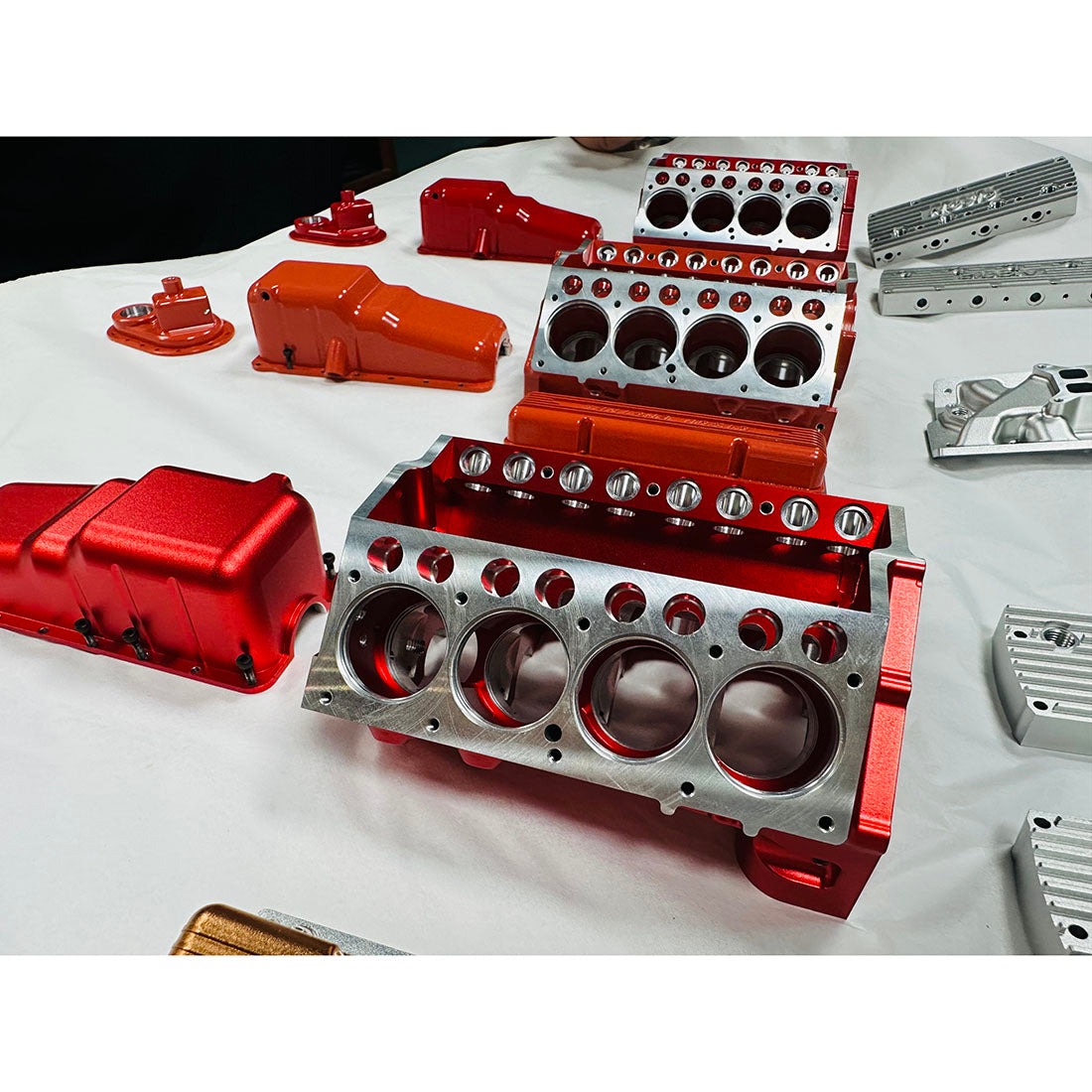

The cylinder is precision machined with 5-axis CNC, with repeatability within 0.005mm for better assembly accuracy.

.Long Stroke:
High-angle, high-hardness wear-resistant camshaft, 4-point supported camshaft, larger intake valve, unaffected by temperature changes with low-temperature intake pipe.

.Crankshaft and Connecting Rods:
Reinforced and hardened wear-resistant connecting rods, optional dual cast iron piston rings (oil rings are optional), 5-point supported crankshaft for increased high-speed operational strength and stability.

.Durable Operation:
Equipped with a double-layer gear pump water pump, independent lubrication system, and reserved oil filter installation position. This model in the OHV version can be combined with a rocker arm forced lubrication system with rocker arm lubricant returning to the cylinder block holes, and an oil sump with an oil level gauge.

.Creative Gift: cison v8 engine
The assembled model is perfect as a collectible desktop engine model or be installed in RC models, as well as a premium model holiday gift.

Age Recommendation: 16+

Specifications: cison v8 engine

.Material: Metal
.Brand: CISON
.Model: V8-440
.Name: Small-block
.Type: KIT Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHV/Flathead
.Displacement: 44CC (8*5.5CC)
.Cylinders: V8
.Stroke: 4-Stroke
.Bore Diameter: 18.5mm
.Stroke Length: 20.5mm
.RPM Range: 1500-10000rpm(OHV)  1500-7500rpm(Flathead)
.Power: Approx. 4.8hp(OHV)  3.3hp(Flathead)
.Cooling Method: Water-Cooled
.Lubrication Method: Independent Lubrication System
.Start Method: Electric Start
.Ignition Method: Distributor Ignition (High-Performance CDI Ignition, Frequency 42000)
.Spark Plug Type: 1/4-32 ME8 Type Spark Plug
.Starting Power Source: 6-12V (Recommended 2S-3S Lipo Battery)
.Fuel Type: Gasoline (Recommended 92# and Above Gasoline)
.Lubricating Oil Type: 2T Engine Oil (Recommended 10W50 2T Engine Oil)
.Product Weight: 1700g
.Product Dimensions: 14 x 9.3 x 10cm
.Package Dimensions: 30 x 20 x 20cm
.Package Weight: 2500g
.Packing: Gift Box

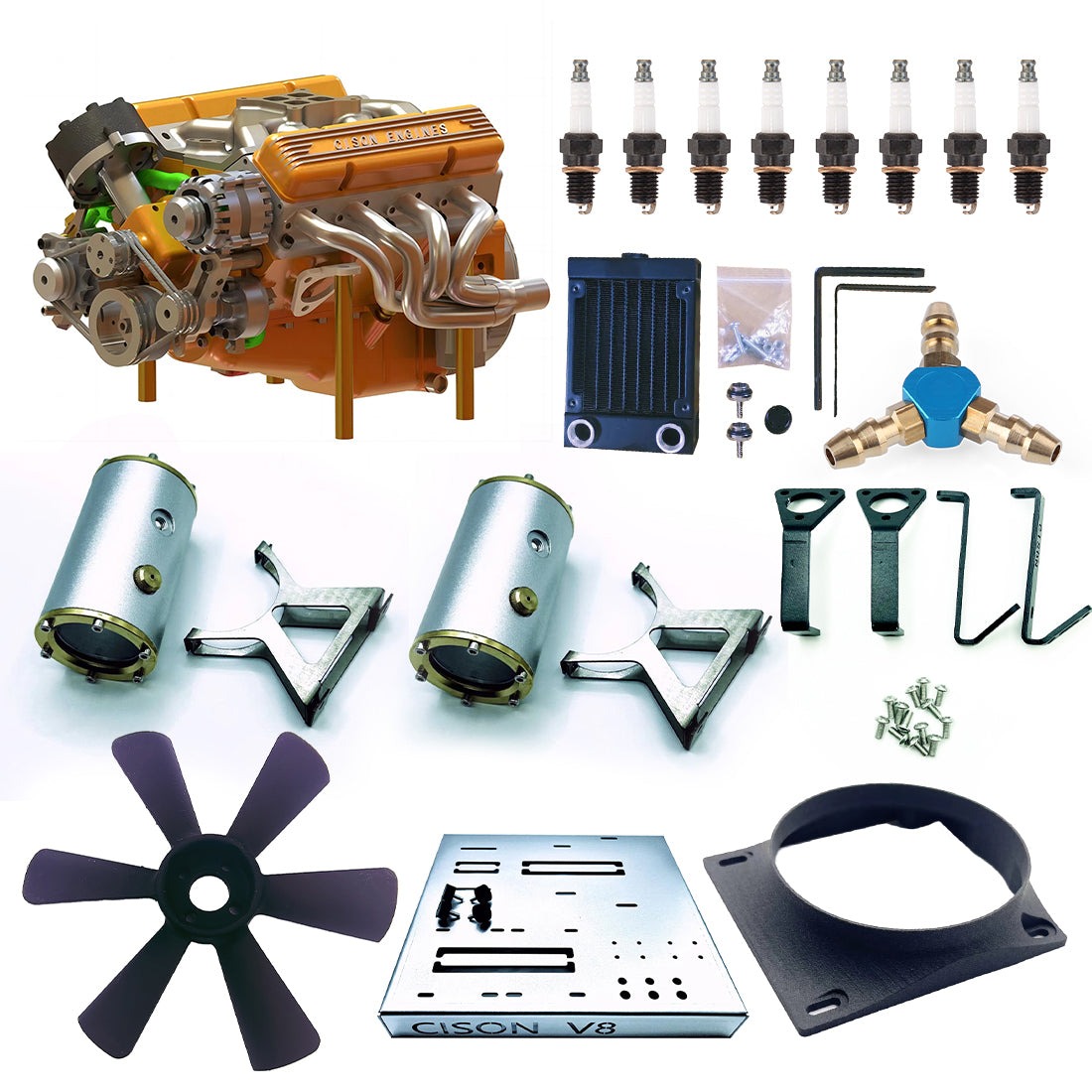

Package List:
1 x CISON V8 Engine Model Kit
1 Set Accessories for CISON V8 Engine
1 x Instructions for CISON V8
