Chevy Vortec EPS Manifold

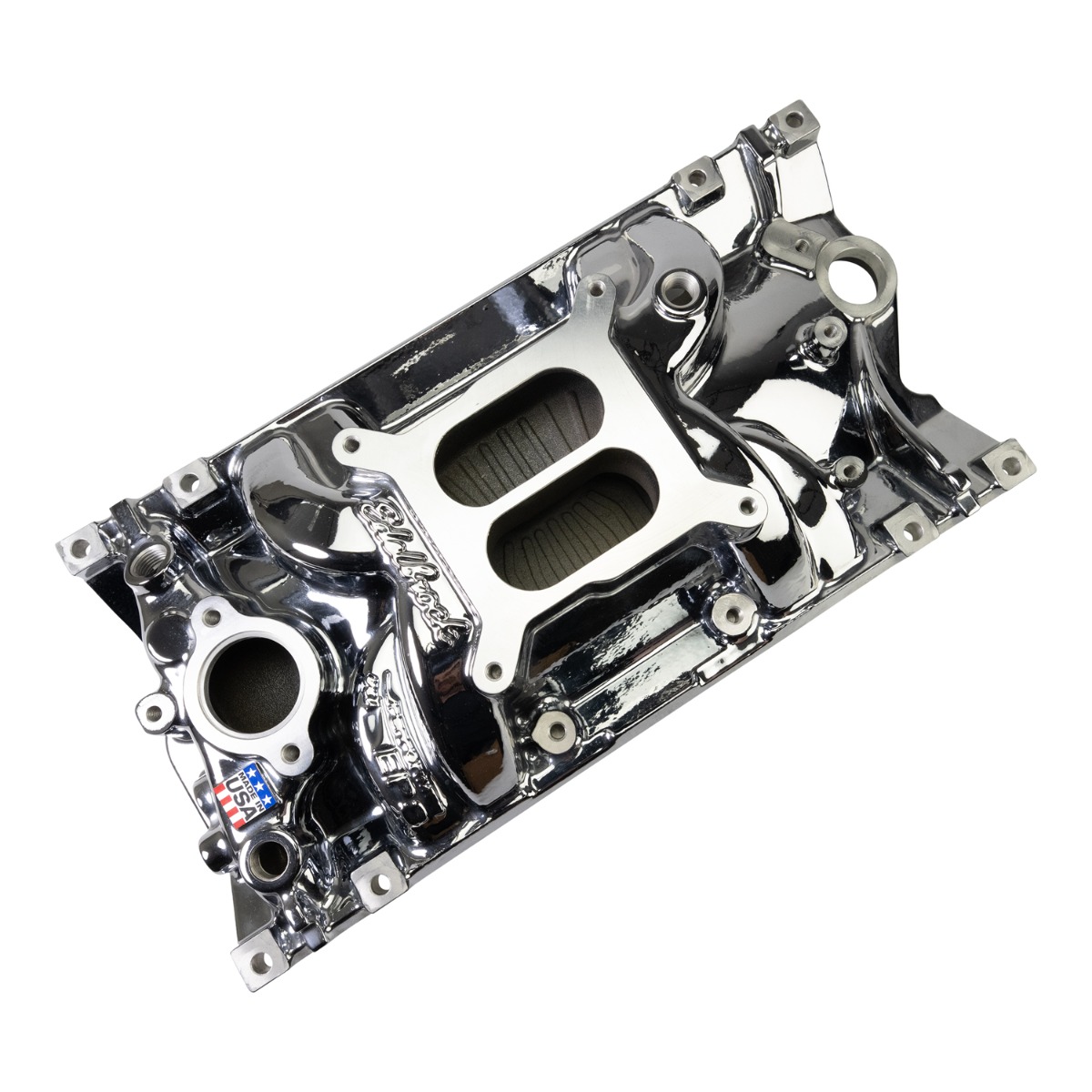

Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Chrome Plasma Finish - Image 2
Chevy Vortec EPS Manifold

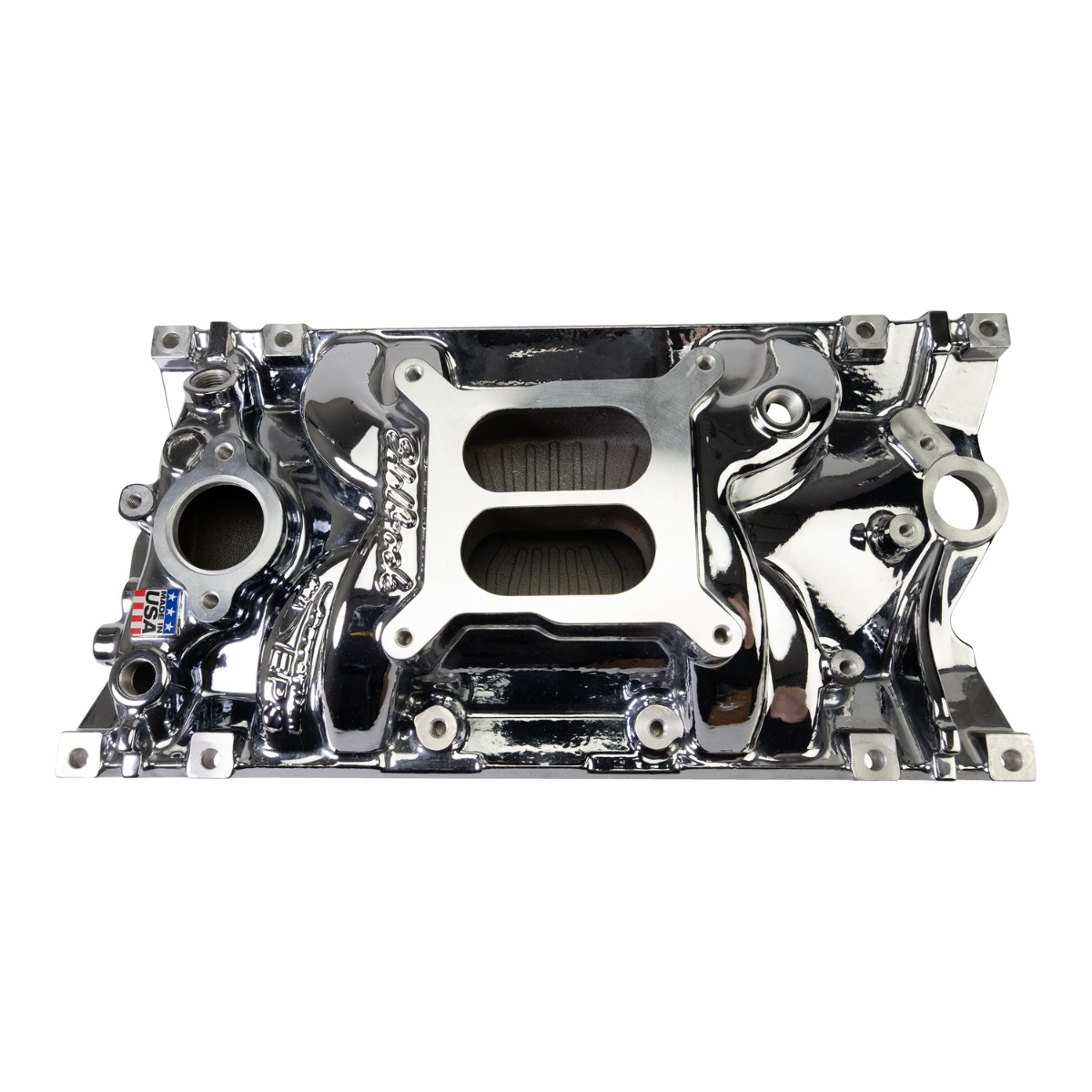

Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Chrome Plasma Finish - Image 4

Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Chrome Plasma Finish

$475.95

Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec, Chrome Plasma Finish



More Information
Manufacturer Edelbrock
Application Application Specific
UPC 00085347897377
Vehicle Model Chevrolet
Series Performer
Grade Type Performance
Gasket Or Seal Included No
Availability Note Available to Order
Warranty 12 Months
RPM Range Idle-5500 RPM
EGR Port No
Emissions Code


Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Manifold ht: A-3.95″, B-5.02″; Carb pad height: 4.52″; Carb recommendations: Edelbrock AVS2, Performer Series. Port exit dimensions: 2.05″ tall with slanted side walls; Recommended intake gasket: Edelbrock #7235 or GM #89017465; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Use #8516 Edelbrock bolt kit which includes hardened washers to prevent galling of the alumnum manifold; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. Will not fit under stock Corvette hood. Use Edelbrock Vortec throttle bracket #8032.
Finish Chrome Plasma
Material Aluminum
Rear Maximum Height 5.08 in
Single Or Dual Plane Type Dual

Chevy Vortec EPS Manifold

Edelbrock Perf EPS Manifold for Small-Block Chevy Vortec. Edelbrock part #2716-CP Performer EPS intake manifold is designed for 262-400 c.i.d. Chevy V8’s with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. The Performer EPS dual-plane manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or AVS2 series carburetors.Chevy Vortec EPS Manifold

Buy Chevy Vortec EPS Manifold online  now

The runner design is “tuned” for peak torque at 3500 rpm on a 350-inch engine and is ideal for power from off-idle to 5500 rpm. Dyno tests showed gains averaging 5+ ft-lbs. of torque from 3000 to 4500 rpm for more performance where you need it most. Match with a dependable Edelbrock square-bore carburetor for maximum performance gains. Chevy Vortec EPS Manifold
The PN 2716-CP version comes with a brilliant Chrome Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finishes the process.Chevy Vortec EPS Manifold
